Packet Tracer – Skills Integration Challenge

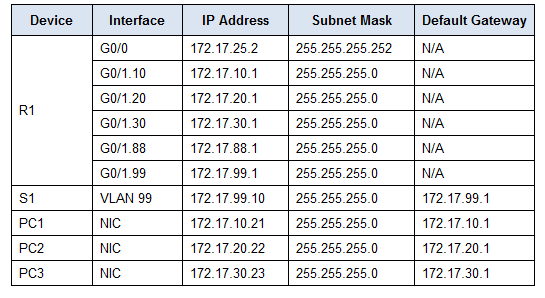

Addressing Table
VLAN and Port Assignments Table
Configuration 5.4.1.2 Packet Tracer - Skills Integration Challenge[S1]
en
config t
interface vlan 99
ip address 172.17.99.10 255.255.255.0
no shutdown
ip default-gateway 172.17.99.1
vlan 10
name Faculty/Staff
vlan 20
name Students
vlan 30
name Guest(Default)
vlan 88
name Native
vlan 99
name Management
interface range fa0/11 – 17
switchport mode access
switchport access vlan 10
interface range fa0/18 – 24
switchport mode access
switchport access vlan 20
interface range fa0/6 – 10
switchport mode access
switchport access vlan 30
interface g0/1
switchport mode trunk
switchport trunk native vlan 88
no shutdown
interface range fa0/1 – 5 , g0/2
shutdown
[R1]
ena
conf t
interface GigabitEthernet0/1
no shutdown
interface GigabitEthernet0/1.10
encapsulation dot1Q 10
ip address 172.17.10.1 255.255.255.0
interface GigabitEthernet0/1.20
encapsulation dot1Q 20
ip address 172.17.20.1 255.255.255.0
interface GigabitEthernet0/1.30
encapsulation dot1Q 30
ip address 172.17.30.1 255.255.255.0
interface GigabitEthernet0/1.88
encapsulation dot1Q 88 native
ip address 172.17.88.1 255.255.255.0
interface GigabitEthernet0/1.99
encapsulation dot1Q 99
ip address 172.17.99.1 255.255.255.0
ena
conf t
interface GigabitEthernet0/1
no shutdown
interface GigabitEthernet0/1.10
encapsulation dot1Q 10
ip address 172.17.10.1 255.255.255.0
interface GigabitEthernet0/1.20
encapsulation dot1Q 20
ip address 172.17.20.1 255.255.255.0
interface GigabitEthernet0/1.30
encapsulation dot1Q 30
ip address 172.17.30.1 255.255.255.0
interface GigabitEthernet0/1.88
encapsulation dot1Q 88 native
ip address 172.17.88.1 255.255.255.0
interface GigabitEthernet0/1.99
encapsulation dot1Q 99
ip address 172.17.99.1 255.255.255.0
